Description
Reduce the effort of handling a suspended tool

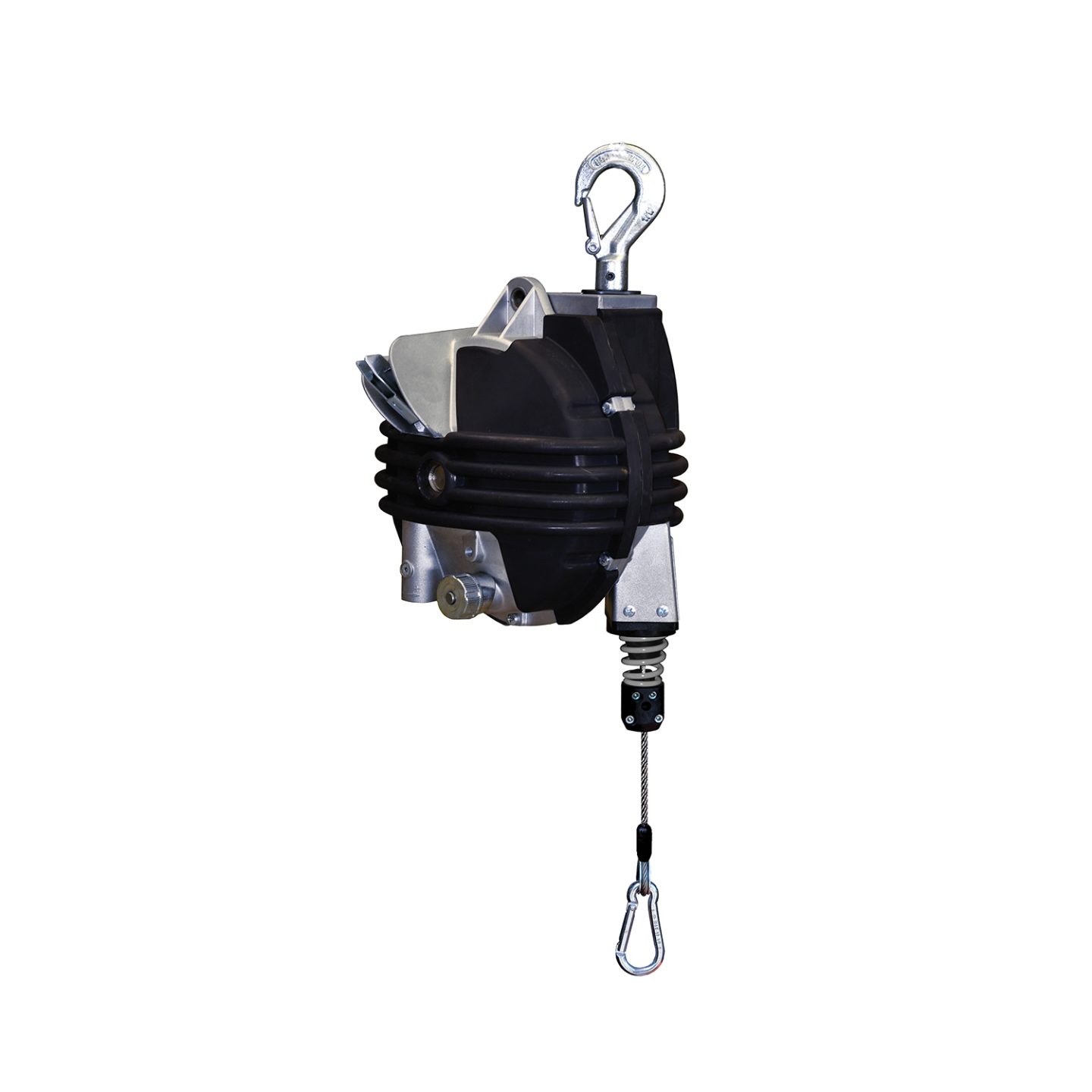

This balancer compensates for the weight of a tool or item of equipment over 2 m of working travel. Choose a load range that covers the total weight of the tool, its connections and every suspended component.
Made by Tecna, GEPRO range.
For indoor use at temperatures from +5 °C to +60 °C.
The aluminium housing has a rubber covering to absorb knocks at the workstation.
Technical specifications
| Reference | 9366G |
|---|---|
| Load range | 35–45 kg |
| Working travel | 2000 mm |
| Cable | Stainless steel |
| Housing | Aluminium with rubber covering |
| Unit weight | 12.10 kg |
Manual drum lock
A knob on the unit engages or releases the manual drum lock. This is separate from option B, which is operated from floor level. If the cable is partly unwound with no load attached, contact GEDO before taking any action.
Centrifugal safety device
A centrifugal device locks the drum in the event of excessive speed, for example after accidental release of the load. This safety function is separate from the lock used to position the tool.
Choose options with the balancer
Option B locks and unlocks the drum from floor level using a handle. The equipped version is referenced 9366G.B.
Option RI 70477 provides an insulated rotary suspension so the tool can turn without twisting the cable and the suspended load is electrically insulated.
Choose options B and RI with the balancer when ordering. They cannot subsequently be fitted to a unit that was not prepared for them.
Dispatch within 1 week
Express dispatch allows departure within 1 week instead of 15 days. The price of the configuration and selected accessories adjusts automatically. Transport time is separate from dispatch time.
Technical documents and spare parts
We supply spare parts. Identify the complete reference and version on the unit plate before selecting a part.
