Description
Compressed air supply with a compatible balancer
Hose kit 7010000015 supplies a pneumatic tool at the workstation. Hose inside diameter: 8 mm. Outside diameter: 10 mm. Maximum operating pressure: 10 bar.
Compatibility and ordering
Compatible references offered: 9320, 9321, 9322, 9323, 9320NY, 9321NY, 9322NY, 9323NY.

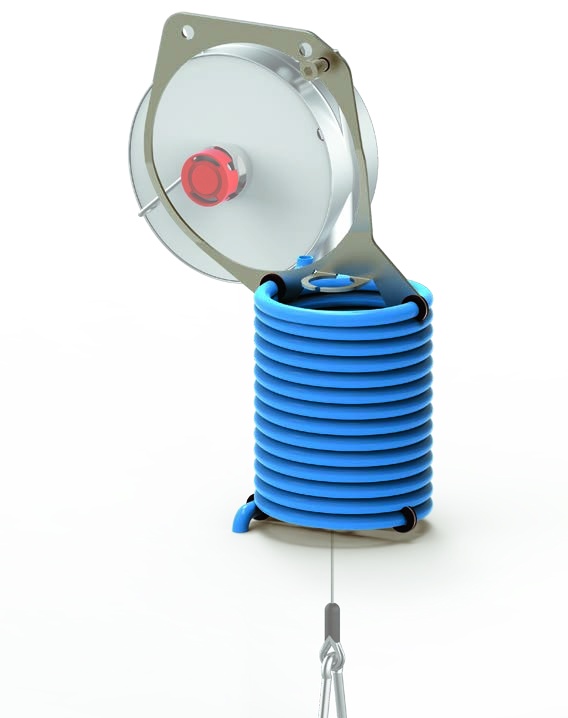

The kit and the balancer are separate items. The balancer shown illustrates installation and is sold separately. Order the kit together with the balancer; do not assume it can be fitted to an existing installation later.
Choose the diameter for the tool’s air flow and check pressure, connections, available height and workstation configuration. The full suspended load must remain within the balancer’s capacity range. Standard compatibility does not establish ATEX, ESD or food-industry suitability.
Technical specifications
| Reference | 7010000015 |
|---|---|
| Hose internal diameter | 8 mm |
| Hose outside diameter | 10 mm |
| Maximum operating pressure | 10 bar |
