Zeca 6627 balancer.

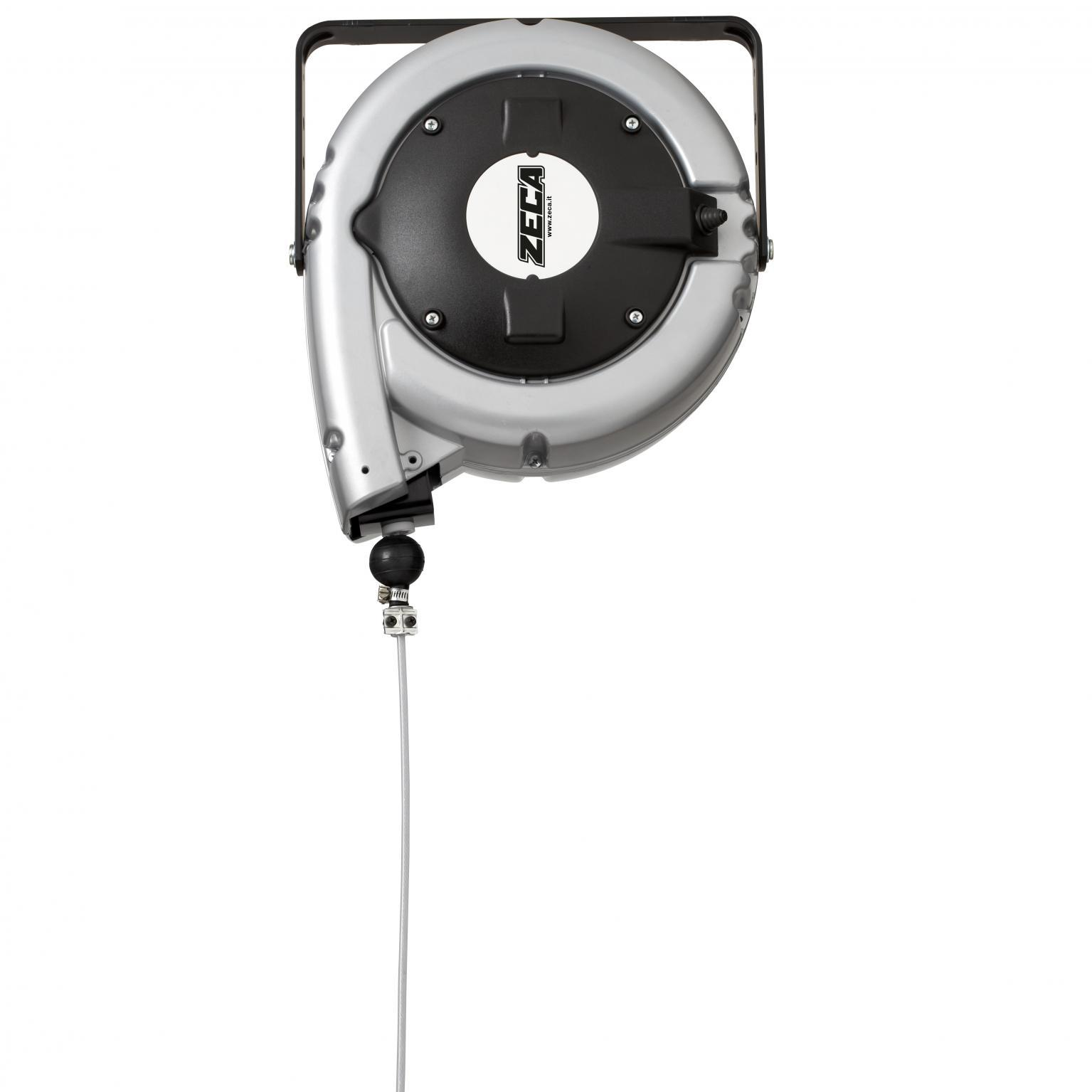

Spring retractor Zeca ROTOLIFT 6627

Load: 9–12 kg. Spring retraction with a cable stop mechanism. Factory-preset capacity.

Quantity and configuration

Quantity

View my selection

Choose your options and accessories before requesting a quotation.

PDF data sheet

SKU: 6627 Category: Zeca — ROTOLIFT retractors

Description

ROTOLIFT

The Zeca ROTOLIFT 6627 allows a suspended object to be lowered for use, then raised above the working area when the cable stop is released. A typical application is suspending a workshop exhaust-extraction hose. Its load capacity is factory preset and cannot be adjusted by the user.

Technical specifications

Manufacturer reference	6627
Brand	Zeca
Range	ROTOLIFT
Minimum load	9 kg
Maximum load	12 kg
Travel (configuration to be confirmed)	4 + 3 m
Cable material	Stainless steel with transparent nylon sheath
Steel cable diameter	3 mm
Outer diameter including sheath	6 mm
Housing material	Aluminium
Load adjustment	Factory preset, not adjustable by the user
Cable stop mechanism	Included
Fall prevention system	Fitted

Travel: 4 + 3 m. Contact us to determine the working travel and configuration for your installation.

Documentation

Technical documents

STEP files still need to be verified for this reference.

Additional information

Manufacturer reference	6627
Brand	Zeca
Range	ROTOLIFT
Minimum load	9 kg
Maximum load	12 kg
Cable material	Stainless steel with transparent nylon sheath
Steel cable diameter	3 mm
Outer diameter including sheath	6 mm
Housing material	Aluminium
Load adjustment	Factory preset, not adjustable by the user
Cable stop mechanism	Included
Fall prevention system	Fitted
Travel (configuration to be confirmed)	4 + 3 m
