Description

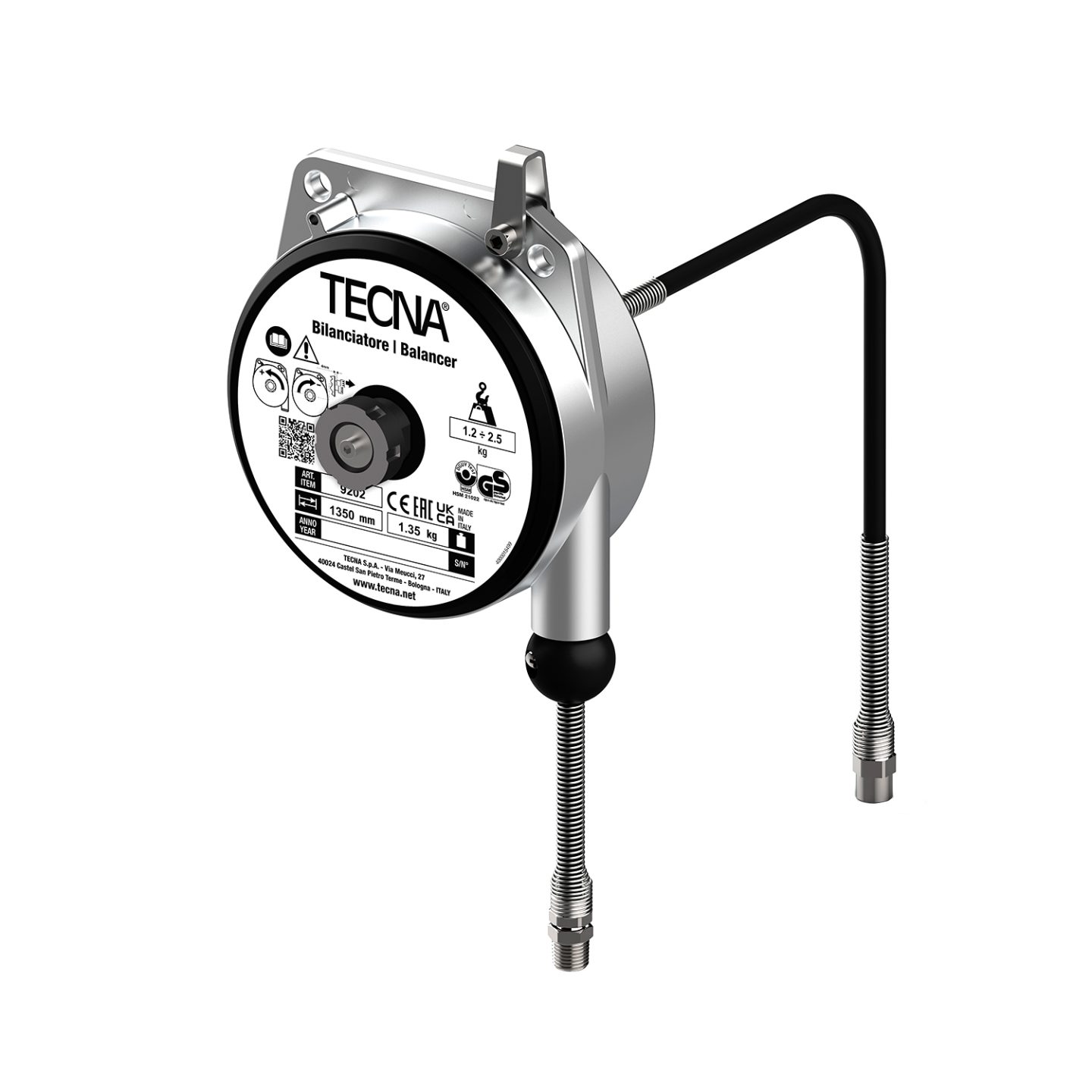

Suspend and supply a pneumatic tool
The polyurethane hose supports the tool while supplying it with compressed air. It combines suspension and air supply at the workstation for a screwdriver, drill, pneumatic shear or blow gun.
Choose the capacity and hose
The total weight of the tool and its connections must remain within the balancer’s load range. Check the hose diameter, connection and air requirements of your tool. Working travel is the available working movement.
Technical specifications
| Reference | 9201 |
|---|---|
| Load range | 0.75–1.5 kg |
| Working travel | 1350 mm |
| Housing | Aluminium |
| Hose material | Polyurethane |
| Hose inner diameter | 6 mm |
| Hose outer diameter | 8 mm |
| Maximum pressure | 8 bar |
| Maximum operating temperature | 50 °C |
| Unit weight | 1.30 kg |
| Air inlet/outlet connections | G 1/4 |
Installation and adjustment
Load capacity is adjusted on the unit and a stop limits working travel. Provide the main suspension and a separate safety suspension. Use the balancer vertically and have it installed by qualified personnel.
Technical documents and spare parts
We supply spare parts. Read the complete reference and version on the unit plate to identify the correct part.
