Working stroke
5,000 mm
Cable
Synthetic fibre

Product sheet PDF

Tecna · Ref. 9702OD

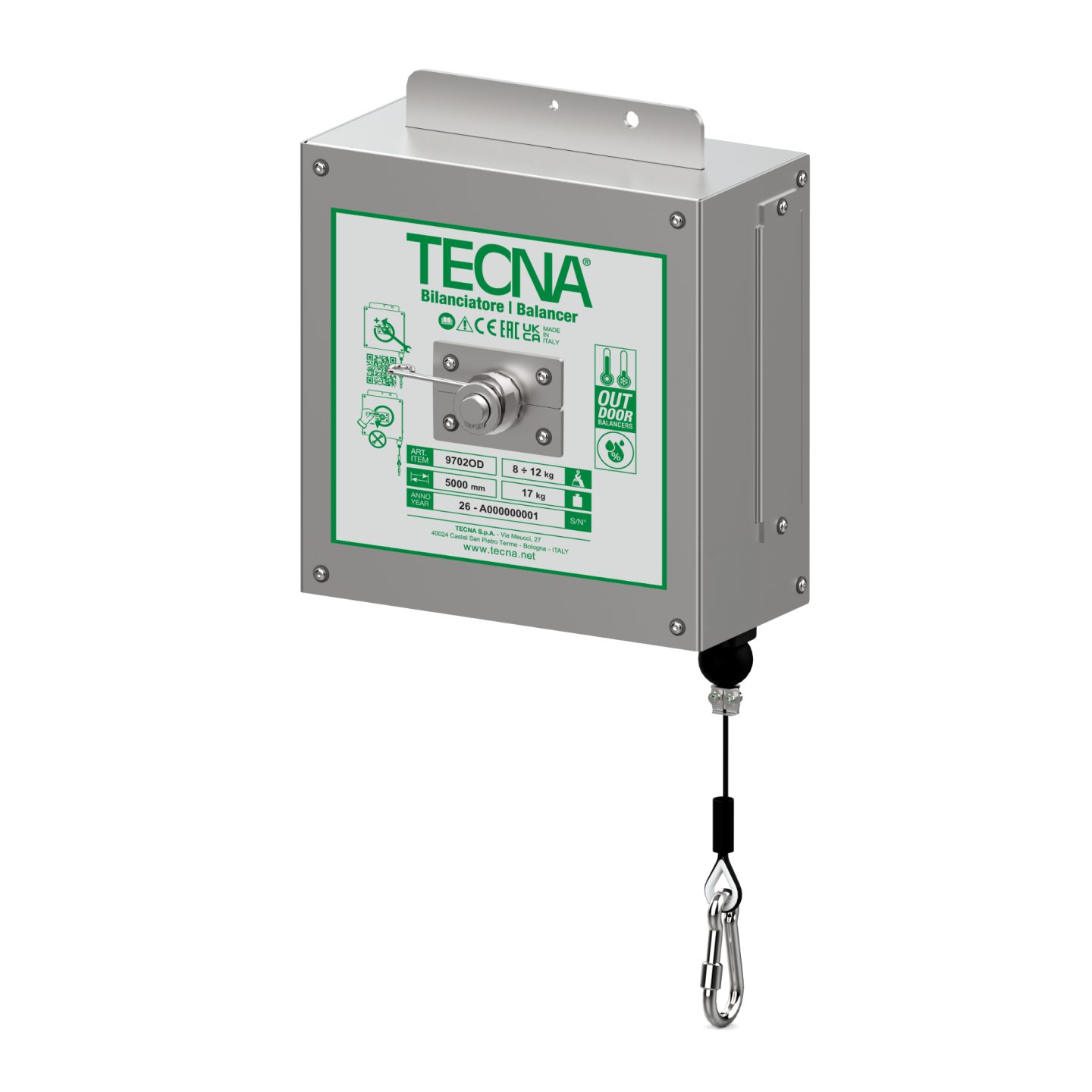

Charging cable balancer Tecna 9702OD

CMS main balancer. Working travel: 5000 mm. Progressive pulling force: 8–12 kg.

On quotation

Configure your balancer

Quantity and configuration

Prepare a quotation with this configuration.

Terms are confirmed in your quotation.

Overview

HPC charging cable management

Charging cable balancer Tecna 9702OD. CMS main balancer. Working travel: 5000 mm. Progressive pulling force: 8–12 kg.

The system includes pull locking and controlled low-speed retraction with progressive braking. It supports a charging cable up to 9.5 m long; the balancer itself has 5 m of working travel.

Documentation and spare parts

Download the technical documents

We supply spare parts. Check the complete reference and version on the identification plate before selecting a part.

Technical specifications

Manufacturer reference 9702OD
Brand Tecna
Range HPC charging cable management
Product type Balancer for a CMS system
Working travel 5000 mm
Environment Outdoor
Rope material Synthetic fibre
Operating temperature −40 °C / +60 °C
Minimum pulling force 8 kg
Maximum pulling force 12 kg
Pull locking Yes
Supported charging cable length 9.5 m
