Load
1–2.5 kg
Working stroke
2,000 mm
Cable
Polypropylene
Housing
Aluminium

Product sheet PDF

Tecna · Ref. 9320NY

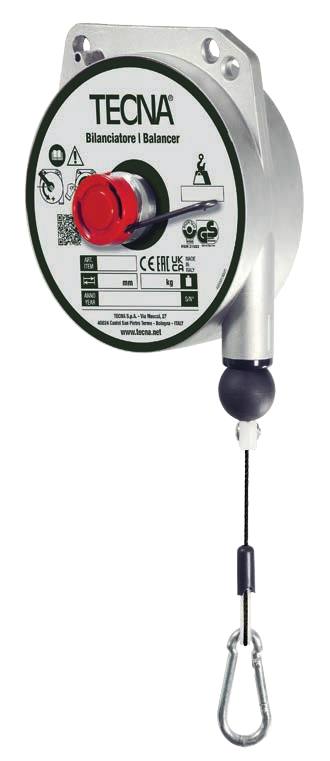

Balancer Tecna 9320NY

Load: 1–2.5 kg. Working travel: 2000 mm.

101.60 € excl. VAT127.00 €−20 %Unit price, excluding options

Configure your balancer

Quantity and configuration

One extension per balancer. Working travel remains unchanged.

One kit per balancer, to order together with the unit. The kit is a separate item.

Order this configuration online.

Prepare a quotation with this configuration.

Prices exclude VAT. Shipping and taxes calculated in the basket.

Overview

Suspend a tool with a synthetic rope

This balancer suspends a tool at the workstation and accompanies its vertical movement. The load to consider includes the tool, its connections and every supported component.

Choose the load and working travel

The total weight must remain within the stated load range. Working travel is the available rope movement; a cable-end extension does not increase that travel.

Supply a pneumatic tool

Two compatible air-hose kits are available: 8/10 mm or 11/16 mm inner/outer diameter, with a maximum pressure of 10 bar. Order the kit together with the balancer. These dimensions describe the selected kit; the unit remains a rope balancer.

Technical documents and spare parts

View technical documents

We supply spare parts. Read the complete reference and version on the unit plate to identify the correct part.

Technical specifications

Reference 9320NY
Load range 1–2.5 kg
Working travel 2000 mm
Rope material Polypropylene
Housing Aluminium
