Description
Suspend a tool with a synthetic rope

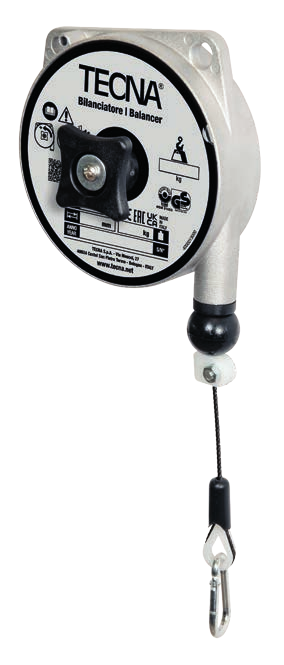

This balancer suspends a tool at the workstation and accompanies its vertical movement. The load to consider includes the tool, its connections and every supported component.
Choose the load and working travel
The total weight must remain within the stated load range. Working travel is the available rope movement; a cable-end extension does not increase that travel.
Technical specifications
| Reference | 9311NY |
|---|---|
| Load range | 0.4–1 kg |
| Working travel | 1600 mm |
| Rope material | Polypropylene |
| Housing | Aluminium |
Supply a pneumatic tool
Two compatible air-hose kits are available: 8/10 mm or 11/16 mm inner/outer diameter, with a maximum pressure of 10 bar. Order the kit together with the balancer. These dimensions describe the selected kit; the unit remains a rope balancer.
Technical documents and spare parts
We supply spare parts. Read the complete reference and version on the unit plate to identify the correct part.
