Description

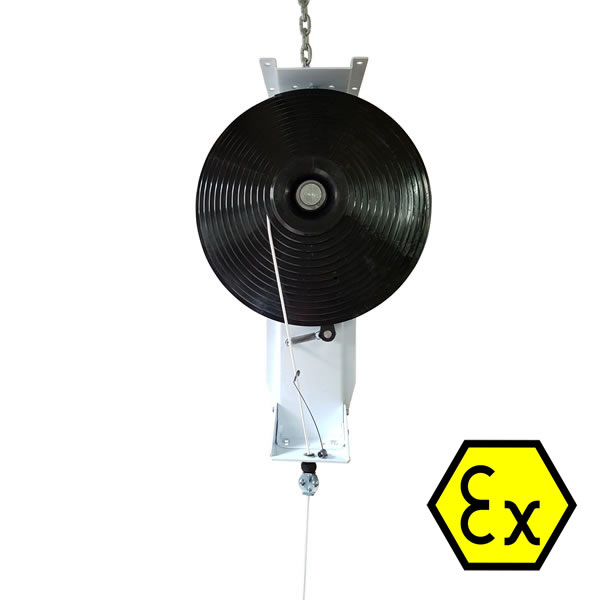

Long travel balancers
Load: 5–11 kg. Working travel: 8000 mm.
Balancer for suspending tools or hoses that require a wide working radius. The sheet steel frame carries a conical plastic drum and a nylon rope.
The mechanism provides 16 locking positions per revolution. Locking can be switched on or off, and a brake controls retraction.
ATEX version for zones 2 (gases and mists) and 22 (dusts). Select the complete configuration for the zoning and operating conditions of the workstation, including options and accessories.
Technical specifications
| Reference | 39-154-431-ex |
|---|---|
| Range | Long travel balancers |
| Minimum load | 5 kg |
| Maximum load | 11 kg |
| Working travel | 8000 mm |
| Unit mass | 10.5 kg |
| Rope material | Nylon |
| Frame material | Powder-coated sheet steel |
| Drum | Conical, plastic |
| Locking | 16 positions per revolution, selectable on or off |
| Retraction brake | Yes |
