Spring balancer Tecna 9355AX

Overview

Choose a balancer for an explosive atmosphere

This ATEX version supports suspended tools at workstations where an explosive atmosphere may occur. Selection depends on the exact marking of the reference and the installation’s operating conditions.

This Zero Gravity version compensates the tool’s weight within its rated load range, following movements and supporting the tool at the working height.

Size the load range and working travel

Include the tool, its holder and every suspended component in the total weight. Keep this total within the reference’s rated load range. Choose the working travel needed for the task; a cable-end extension adjusts suspension height without increasing working travel.

Check the gas group and temperature class and, where a dust marking is given, the corresponding dust group and surface temperature. The model marking does not replace verification of the complete configuration, accessories and grounding.

The housing is aluminium and the cable is stainless steel. Connect grounding at the point specified in the operating instructions and check the mountings before use.

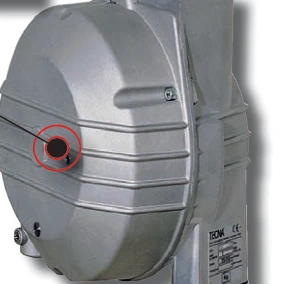

F option — rotation brake

Version 9355.FAX has a friction device controlling drum rotation speed. This option must be specified when ordering and cannot be fitted later to an unprepared unit. A brake does not replace an operating lock.

RC option — swivelling device

The RC swivelling device, reference 7270000004, is specified for this series. Mention this option in your quotation request to define the complete configuration. It must be ordered with the balancer.

Documents and spare parts

Download the technical documents on this page

We supply spare parts. Check the complete reference and version on the identification plate before selecting a part.
